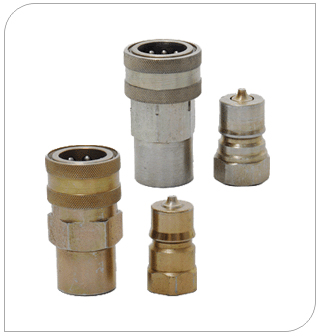

Hydraulic Series ISO b

Hydraulic Series ISO b
SPECIFICATIONS
Size 1/4" to 2"
Working Pressure Upto 350 Bar
Material Carbon Steel / Stainless Steel
Application Agricultural & Industrial

ISO B SERIES (GA Drawing)


SR.No.
SIZE
L1
L2
S1
S2
ØD1
L
1
1/4"
36.0
57.5
19.0
22.0
27.0
71.2
2
3/8"
40.0
65.5
22.0
27.0
34.0
80.2
3
1/2"
47.0
75.0
27.0
36.0
40.0
94.4
4
3/4"
56.3
92.0
36.0
41.0
52.0
112.8
5
1"
64.0
104.0
41.0
50.0
60.0
128.2
All dimensions are in mm - Due to ongoing development dimensions may change





*
